Ethernet switches sit at the heart of modern networks, directing data between devices and keeping communication running smoothly. While many switches may look similar on the outside, the types of ports they offer can greatly influence performance, flexibility, and the overall design of a network. Understanding these port types is essential for anyone building or managing network infrastructure. This guide breaks down the most common switch port options and explains where each one fits best.
The Role of Ethernet Switches
Switches act as traffic managers for connected devices—computers, printers, servers, and more—ensuring that data packets reach their intended destination quickly and efficiently. They range from basic, unmanaged models to advanced, fully managed switches designed for large and demanding networks.
Common Types of Ethernet Switch Ports
Copper Ports (RJ45)
Copper ports are the ports most people recognize. They rely on twisted-pair cabling such as Cat5e, Cat6, or Cat6a and are widely used for everyday LAN connections.
Key Features
- Speed Options: Supports Fast Ethernet (100 Mbps), Gigabit Ethernet (1 Gbps), and up to 10 Gigabit Ethernet.
- PoE Support: Many copper ports can supply electrical power to devices like phones, access points, or cameras through Power over Ethernet.
- Cost-Effective: Copper connections are affordable and easy to deploy, making them ideal for most indoor network links.

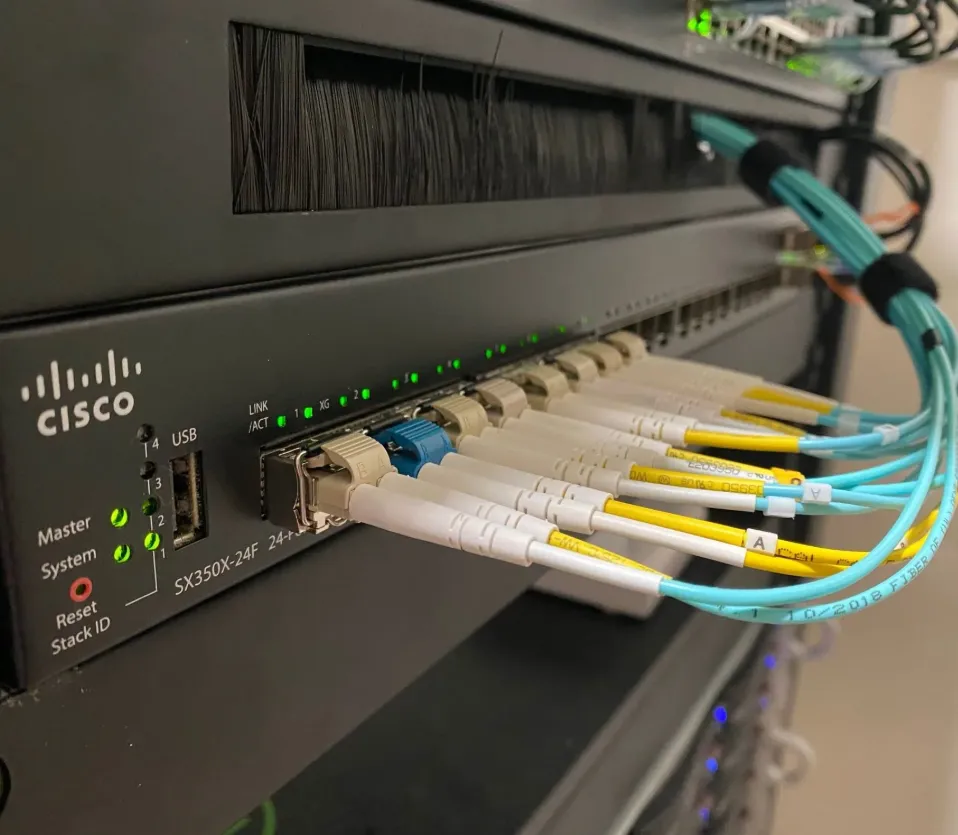

Fiber Ports
Fiber ports use optical fiber to transmit data, offering superior speed and distance capabilities. They are essential for high-performance and long-range connections.
Types of Fiber Interfaces
- SFP (Small Form-Factor Pluggable): Modular ports that accommodate various fiber transceivers.
- SFP+: Supports higher speeds up to 10 Gbps.
- QSFP/QSFP+: Designed for very high-speed connections, often reaching 40 Gbps or more, commonly used in data centers.
Fiber ports are perfect for backbone links, inter-building connections, and high-speed segments that need low latency and long-distance reach.
Combo Ports
Combo ports give administrators the option to use either an RJ45 copper port or an SFP fiber port on the same interface—though only one can be active at a time. This flexibility helps adjust to evolving network layouts without purchasing additional hardware.
Best Use Cases
- Environments where network needs frequently change
- Networks that combine copper and fiber connections
Stacking Ports
Stacking ports allow multiple switches to be linked together and managed as a unified system. This technique increases capacity and simplifies administration, creating what appears to be a single, larger switch.
Advantages
- Improved scalability
- Redundancy and failover protection
- Simplified configuration and monitoring
Console Ports
Console ports offer direct access to the switch’s command-line interface, typically through a serial connection. They are primarily used during initial setup or troubleshooting.
Typical Tasks
- Configuring network settings
- Upgrading firmware
- Recovering from configuration issues
Uplink Ports
Uplink ports connect a switch to other networking equipment, such as routers or core switches. These ports often support higher speeds to handle aggregated traffic from other ports.
Common Characteristics
- May include 1G, 10G, or even higher-speed options
- Frequently implemented as fiber ports for long-distance or high-bandwidth needs
Advanced Features Found on Switch Ports
VLAN Capability
VLANs allow administrators to divide a single switch into multiple logical networks. This improves security and network organization by isolating traffic.
Benefits
- Reduced broadcast traffic
- Enhanced security
- Better segmentation of departments or services
Link Aggregation
This feature combines multiple physical links into one logical connection, increasing bandwidth and providing redundancy.
Why It Matters
- Higher throughput
- Failover protection
- Load balancing capabilities
Quality of Service (QoS)
QoS ensures that time-sensitive applications—like video calls or voice traffic—receive priority, improving overall performance for critical services.
How It Works
- Applies priority rules to certain types of traffic
- Helps maintain smooth performance during periods of heavy usage
Choosing the Right Port Types
The best port type depends on your network’s size, structure, and requirements.
- Copper Ports: Ideal for short-distance, low-to-medium bandwidth environments like offices or homes.
- Fiber Ports: Essential for long-distance connections, high-speed backbones, or environments requiring noise immunity.
- Combo Ports: Useful when you need flexibility without committing to a single medium.
- Stacking Ports: Best for growing networks that need additional capacity without adding management complexity.
- Uplink Ports: Necessary for connecting access switches to higher-level devices.
Final Thoughts
Ethernet switches are versatile tools, and the types of ports they support can significantly impact network design and performance. By understanding the role of copper, fiber, combo, stacking, console, and uplink ports—as well as advanced features like VLANs, QoS, and link aggregation—you can build a network that is both efficient and future-ready.
Choosing the right mix of port types ensures that your network remains scalable, reliable, and optimized for the demands of modern applications, whether in a small office or an expansive data center.
