Ethernet cables are a core part of every wired network, linking devices such as computers, switches, and routers so they can communicate with one another. While most people are familiar with standard Ethernet cables, crossover cables serve a more specialized purpose. This blog takes a closer look at what they are, how they work, and when they’re still useful in today’s networking environments.
What Exactly Is an Ethernet Crossover Cable?
A crossover cable is a type of Ethernet cable designed to directly connect two devices of the same type. Instead of routing traffic through a switch or router, a crossover cable enables a point-to-point link between devices like two computers or two switches.
The key difference lies in how the internal wires are arranged. In a standard Ethernet cable, each wire follows a fixed pattern so signals flow from one device to another through a network. When connecting similar devices directly, however, the transmit wires must feed into the receive wires of the opposite device. A crossover cable accomplishes this by swapping specific wire pairs.
How a Crossover Cable Works
Inside an Ethernet cable are pairs of wires responsible for sending and receiving signals. In a standard straight-through cable, each pin on one connector lines up with the same pin on the other. A crossover cable changes this arrangement by swapping the transmit and receive pairs.
In a typical straight-through cable:
- Pin 1 → Pin 1
- Pin 2 → Pin 2
- Pin 3 → Pin 3
- Pin 6 → Pin 6
In a crossover cable:
- Pin 1 → Pin 3
- Pin 2 → Pin 6
- Pin 3 → Pin 1
- Pin 6 → Pin 2
This wiring shift ensures that the transmitting signals from one device arrive at the receiving pins of the other, enabling proper communication without any intermediary hardware.
Where Crossover Cables Are Used
Although they are less common today, crossover cables still serve valuable functions in certain situations:
Direct computer-to-computer connections
In earlier networking setups, crossover cables allowed two computers to transfer files or share resources without any networking equipment between them.
Connecting similar network devices
Older switches, hubs, and routers that lack automatic crossover detection require crossover cables to link them directly.
Testing and troubleshooting
Technicians often use crossover cables during diagnostics to confirm that devices can communicate over a simple, direct connection.
Temporary or portable setups
When a quick link is needed and networking hardware isn’t available, crossover cables provide an easy solution.
Straight-Through vs. Crossover: What’s the Difference?
Straight-through cables are used to connect two different types of devices, such as a computer to a switch or router. They maintain identical wiring at both ends.
Crossover cables, on the other hand, swap the transmit and receive lines to link similar devices directly. This distinction used to be essential when setting up wired networks, as using the wrong type of cable meant the devices couldn’t communicate.
Are Crossover Cables Still Relevant?
Modern networking equipment often includes Auto-MDIX, a feature that automatically detects and adjusts for crossover or straight-through wiring. This has significantly reduced the need for dedicated crossover cables.
However, they remain useful when working with legacy hardware or when performing controlled tests where automatic adjustments are not desired. In these cases, understanding how crossover cables function ensures efficient and reliable setup.

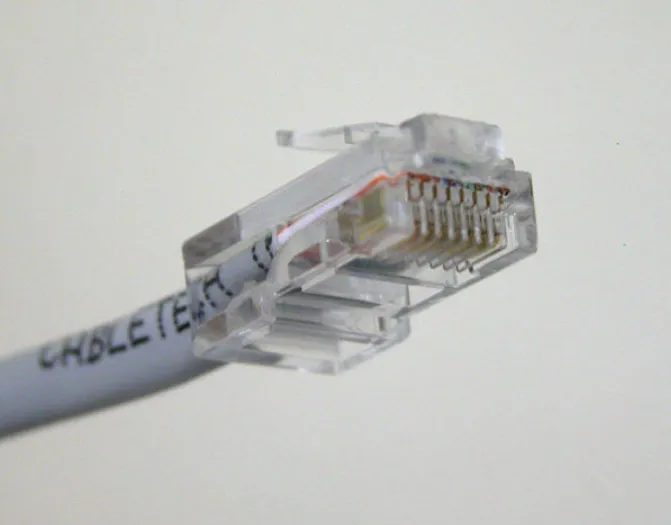

How to Recognize a Crossover Cable
You can usually identify one by inspecting the plugs:
- Hold both connectors side by side.
- Compare the color order of the internal wires.
- If the sequence differs between the two ends, it’s a crossover cable.
- Pay particular attention to whether the wires for pins 1 and 2 are swapped with those for pins 3 and 6.
Some cables are also labeled by the manufacturer for easier identification.
Making Your Own Crossover Cable
If you need a crossover cable but only have a straight-through one, you can reterminate one end:
- Remove the existing connector.
- Strip back the outer sheath.
- Arrange the wires according to the crossover pattern.
- Attach a new RJ45 connector and crimp it securely.
- Test the cable to confirm that the connection works.
This process requires the proper tools and a bit of practice, so buying a pre-made cable may be a better option if you’re new to cable work.
Final Thoughts
Crossover cables once played a vital role in enabling direct communication between similar network devices. While modern technology has made them less essential for everyday networking, they continue to be valuable in testing, troubleshooting, and working with older equipment. Knowing how they work and when to use them can make managing legacy networks much simpler and help you troubleshoot issues more effectively.
